Quick Details

  • Type: Multi-Function Packaging Machine
  • Condition: New
  • Function: Slitting, Wrapping
  • Application: Food
  • Packaging Type: wooden box
  • Packaging Material: Metal
  • Automatic Grade: Automatic
  • Driven Type: electric and pneumatic
  • Voltage: 220/380v
  • Power: 4Kw
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: goldshine
  • Model Number: GD-AF-600
  • Dimension(L*W*H): 3600x1400x1910mm
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Weight: 1800kg
  • Producing Speed: 2.5m/s
  • The Core Diameter: 25/30/35
  • The Length of Finished Product: 3-300m
  • Wall thickness of Material: 0.009-0.023mm
  • Max. Unwind roll Diameter: 600mm
  • Intermediate relay: Omron(German)
  • PLC: Siemens(German)
  • Human-computer interface: Siemens(German)
  • Frequency Convertor: Mitsubishi(Japan)

Packaging & Delivery

Packaging Details: Our aluminium foil roll making machine is packed in wooden box.
Delivery Detail: Shipped in 30 days after payment
Product Description

Product Feature

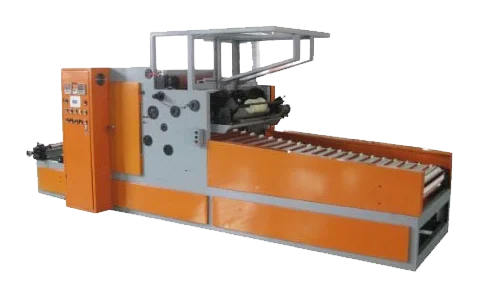

   Aluminium foil roll making machine with competitive priceis developed against foreign equipments and domestic requirement, which is an automatic machine to adhering, take-up, cutting certain foils in one process. It is suitable for detaching household foils.
   The foils is used for keeping fresh, barbecue, cleaning and so forth. It can replace plastic films and is an advanced equipments to keep clean and safety for food in domestic suppliers.
    For using PLC to be control system from Simens of Germany, it can be done to feed pipe, pick-up, adhering and cutting foils automatically in production. It uses computer control to setup and measure the length of foils. The control system is continous speed adjustable of foils' linear speed. All drivers are automatic, less defect, safety, high efficiency and simple operating. It is a Hi-tech and best equipment in capability and pricing.

Name
automatic rewinding machine
Max. Width of roll
600mm
Length of finished product
3-300mm
Producing speed
150m/min
Total Power
4KW Max
Weight
1800kg
Machine Size
3.6*1.4*1.91m
Certifications

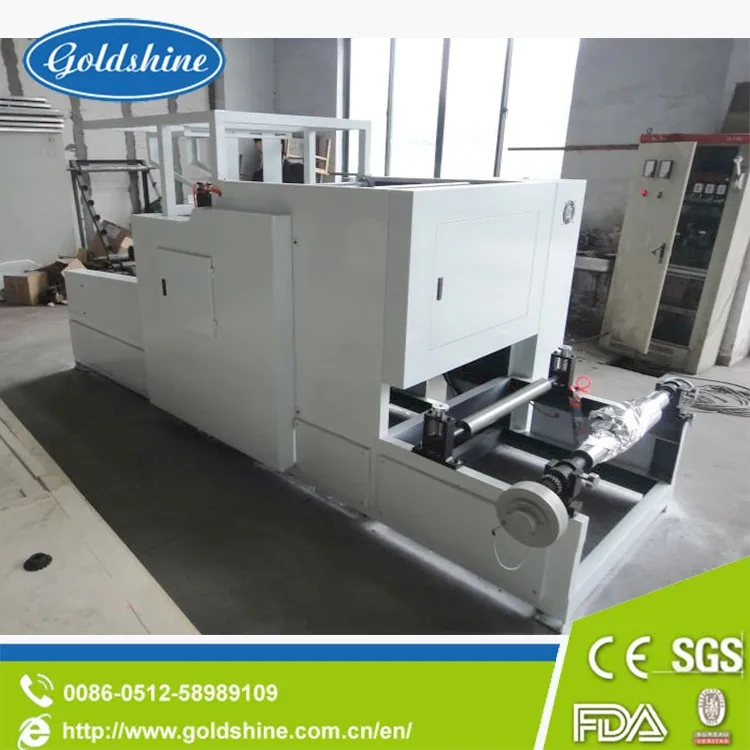

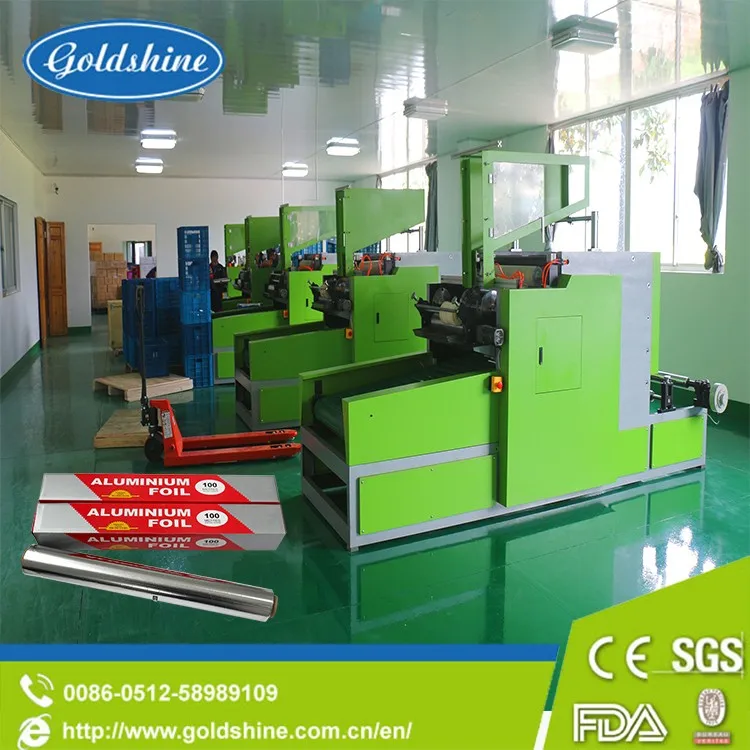

Detailed Images

Machine Parts

Name: feeding machine

It is automatic ,less defect,safety,high efficiency and simple operating.

Main Parts

Name: Rewinding part
It can be done to feed pipe,rewinding,cutting certain foils in one process.

Machine Parts

Name: Product conveyor belt
The finished product is delivered through the conveyor belt.

It is automatic ,less defect,safety,high efficiency

Main Parts

Name: Operation panel

It uses PLC to be control system from Simens of Germany and uses computer control to set up and measure the length of foils.


Packing & Delivery
Hot Selling
Our Company
Customers
FAQ

Q: Are you trading company or manufacturer ?
A: We are manufacturer.

Q: How long is your delivery time?
A: Generally it is 15-35 days, it is according to your quantity.

Q: Can you do the machines' appearance design for us?
Yes. We have a professional team with rich experience in machne's apperance design and manufacturing.

Q: What is your terms of payment ?
A: L/C,D/A,D/P,T/T,Western Union.

Q:Can you do the machines' appearance design for us?
A:Yes. We have a professional team with rich experience in machne's apperance design and manufacturing.

Q:What's your after-sale service?
A:Our own engineers could be asked by you overseas for your serve. You can also ask your staff or yourself to our factory to learn.
